Power at its Core
The latest Intel 8th Gen Intel Whiskey Lake processor provides you with higher and fast perfromance and impresses the Industrial end-customers with a performance increase of up to 40% compared to previous U-Series processors enabled by a leap from 2 to 4 cores along with the improved microarchitecture. The strong CPU allows you to work with greater productivity and speed whether its a office, work, home entertainment or gaming.
Multiple Display Support
The mITX-WL10 supports H.265 HW decoder that delivers stunning graphics and media performance.
Industrial controlling
Medical
Smart school
Digital signage

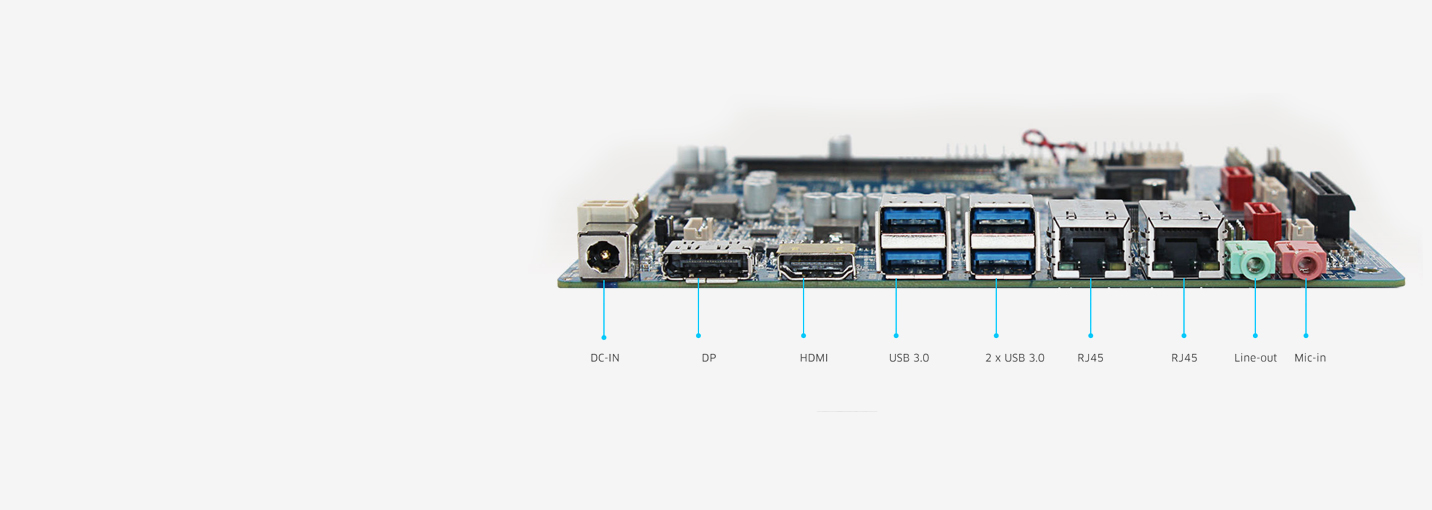

Expandability & Rich I/O Connectivity
WL10’s rich I/O and GPIO configurations fulfill the needs of different customer peripherals in enhanced embedded applications in infotainment, industrial automation, process control, small business/storage server, entry / mobile / cloud workstation, media transcode and edge computing / IoT segments.
產品概述

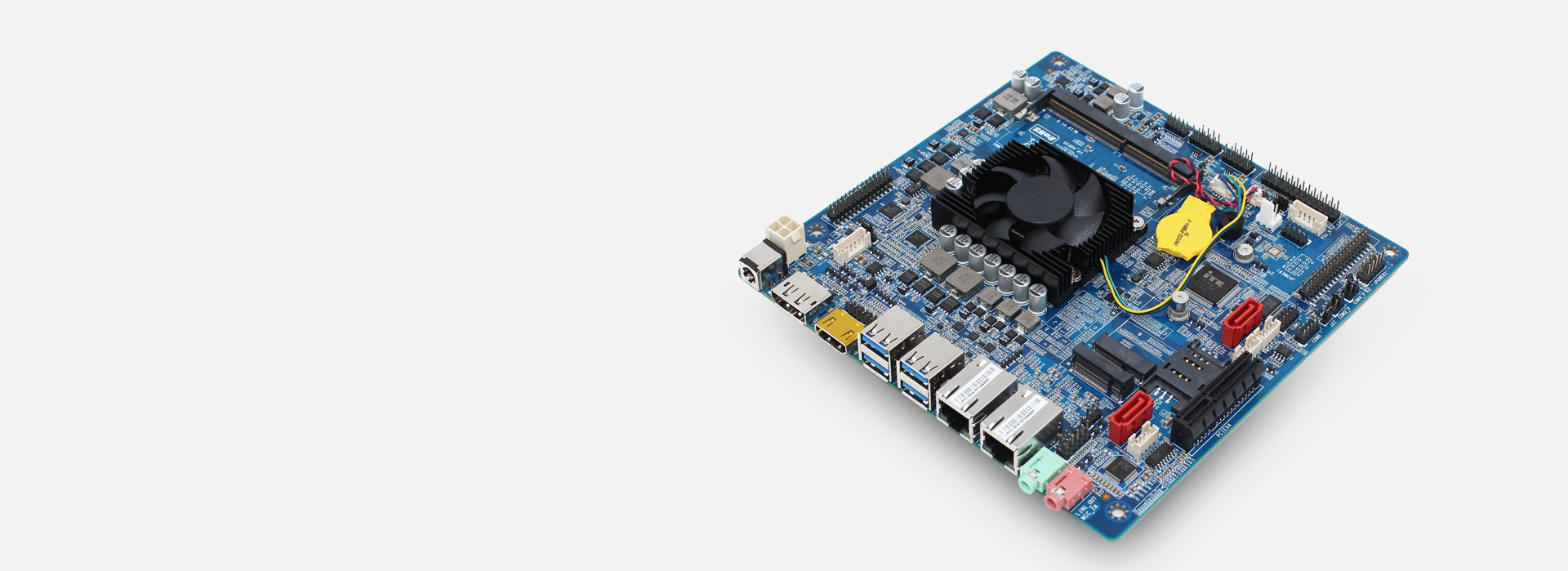

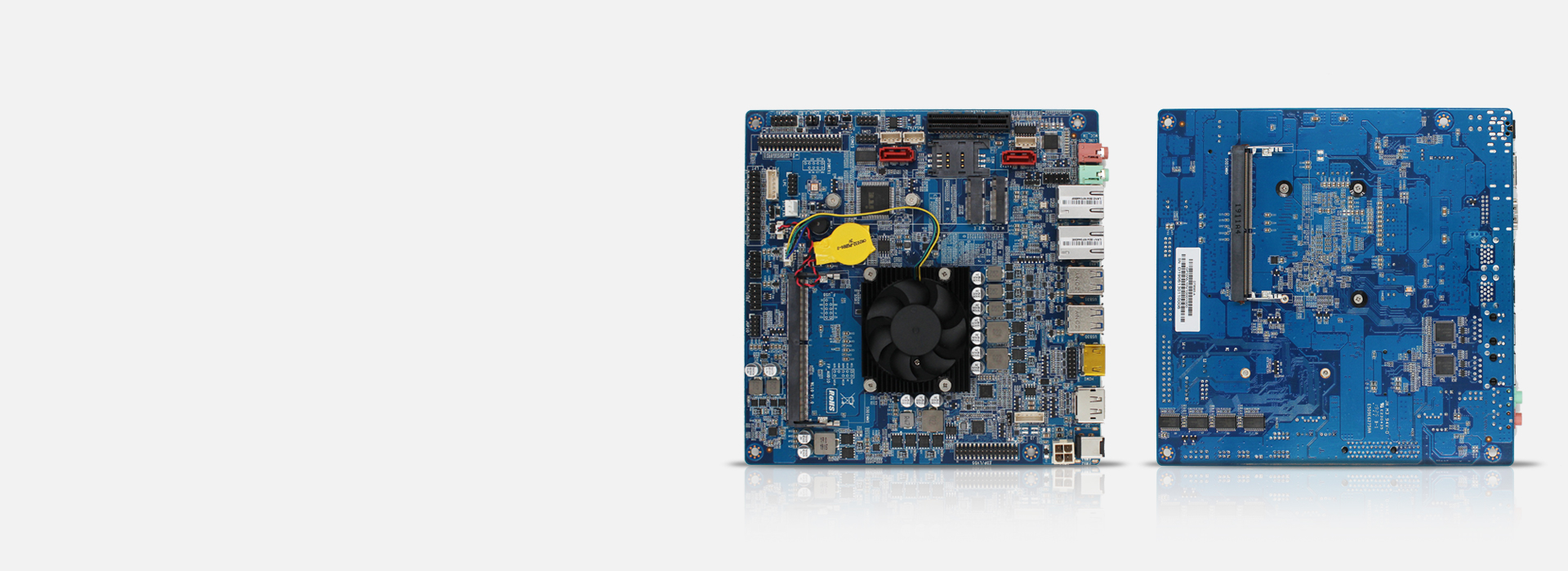

The mITX-WL10 is an embedded motherboard, supporting Intel? latest 8th Whiskey Lake-U Core? i3/i5/i7 and Celeron processor, Celeron? 4205U, Core? i3-8145U, Core? i5-8265U, Core? i7-8565U.

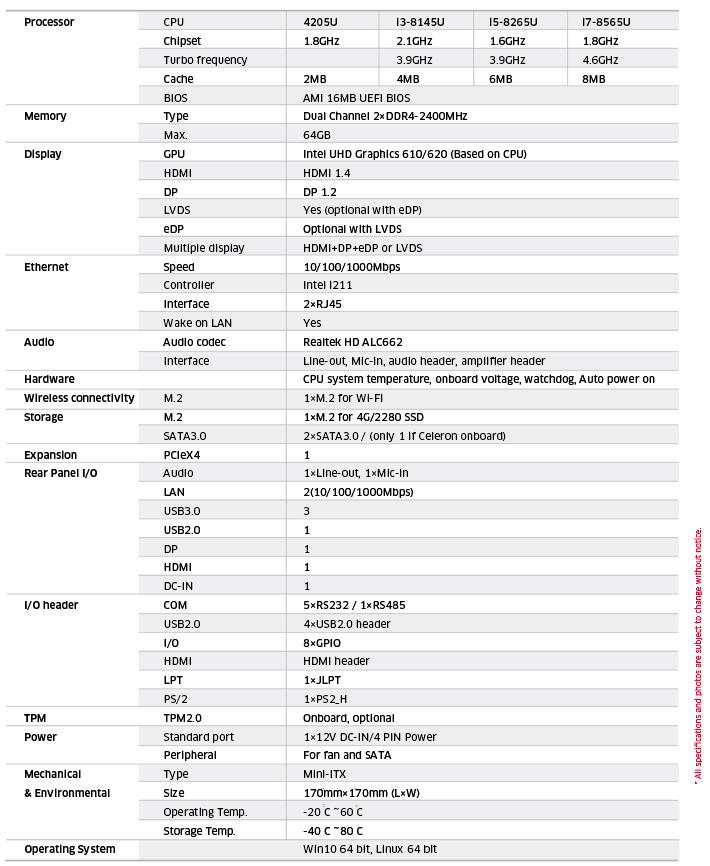

This board features multiple display via 1×Display Port1.2 and 1×HDMI1.4 and 1×eDP or 1×LVDS. It carries 2×DDR4 SO-DIMM 2400MHz slots up to 64GB to add higher bandwidth and lower latencies for processes. It has 2×10M/100M/1000M BASE-T gigabit LAN (Intel i211), 3×USB3.0, 5×USB2.0, 5×RS232, 1×RS485, 1×LPT, 1×JHDMI, 1×PS2_H, 8×GPIO.

產品特色

    • Intel  8th Gen Whiskey Lake-U processor

    • Dual channel DDR4 up to 32 GB memory

    • Multiple display: HDMI, DP, eDP/LVDS

    • Support 10/100/1000Mbit ethernet card

    • Support 3G/4G network

    • TPM Security (optional)

    • SATA3.0, M.2, PCIe 4x

    • 12V DC input
